STX PRO Titaniuml Frame-130

Available: In Stock

STX 130 frame come with SS spokes as shown and 10L tank. Optional aluminum spokes are avail for $60 more. No carbon Fiber Spokes avail on 130 Frames.
Note: This tank should remain at least 25% full at all times.

Vortex Aero Titanium frame.  Simple, Ergonomic frames for the DIY guy in mind.

Build your own Paramotor for less than 5k usd

Are you sick and tired of getting ripped off for thousands of dollars for some aluminum, titanium, or carbon fiber sticks and round tubes? We are too...
There is no reason in this entire world that some aluminum sticks and round tubes should cost $2000-$2500 (the same price as a good used car).

Our frames are designed and built using the latest technologies, great suggestions from top pilots, and a company that has been building paramotors for the past 20+ years.

We started with the YOODA swing arm hang points and engine mounting positions...Why YOODA? It is a badass frame that flies very well and has very little rotational torque and twist.

The OSEM system (Off Set Engine Mount) allows you to move the engine left or right to compensate for twist.

The ASAM system (Adjustable Swing Arm Mount) gives you the flexibility to adjustable the swing arms up, down, left and right to compensate for rotational torque.
EXAMPLE: If you raise the right arm up 20mm (belt drive engines) then you do not have to push down with your left leg so hard to compensate for torque when you are at full throttle.

The FTQR system (Fuel Tank Quick Release) comes in very handy when you need to remove the 13L tank (approx 3.5 hours of flight-3.5GPH) to walk to the the gas station to get some gas.

Easy to reach large fill neck that is ergonomically positioned too the side so you do not have to carry around special funnels or pumps just to fill your tank.
The neck sticks out far enough so you don't have to reach past the hot exhaust and burn your hand. The large fill hole makes it easier to pore fuel into the tank without spilling it all over your harness.

MEM system (Multi Engine Mount) makes our frame highly adaptable for many engines. The frame includes mounts for Black Bull, BD 172, HPR, Moster, Viper, Atom 80, Top 80. You can easily make your own bracket for your engine if it is not shown in the list.

Left and Right double hoop sections stop the single ring hoops from flexing into the prop when you do forward launches (tandem foot launch no problem here).

How much does our frame weight?

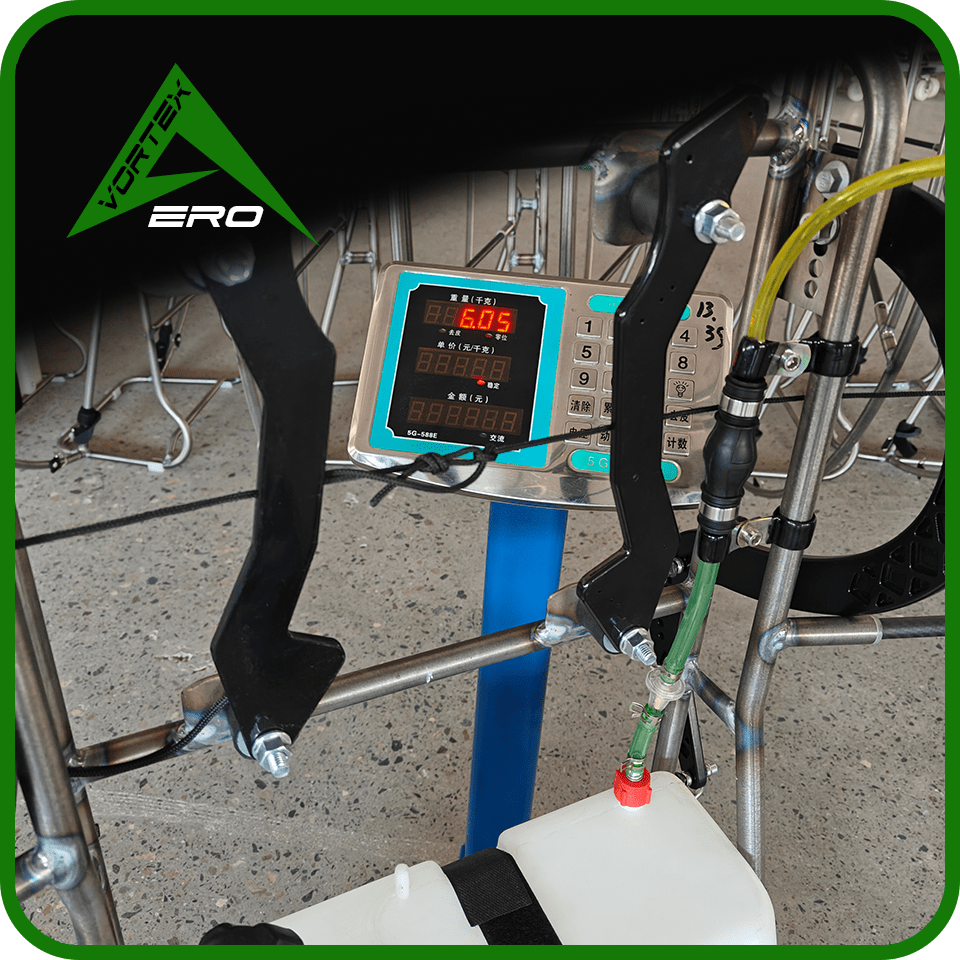

6KG COMPLETE (140cm shown)

8.9KG with VA light Harness

Typical complete paramotor with our 140cm frame is around 20-27kg depending your engine and and harness.

Moster Dual start with clutch 26Kg/57Lbs (140cm frame)

With our DIY frames you can build your own paramotor for under 4K.....yes you read it correctly. DIY your own paramotor for less than 4k complete and ready to fly. There are many good new and used engines for around $1500-$2500, harness for 325-425, prop for $270.

We are not responsible for shipping damage.

ALL our products have insurance included in the cost of shipping. Should your parts arrive with any damage, you must file a claim with the shipping company. We will assist you to the best of our ability in any claim process. We will not be responsible for additional shipping fees, import taxes, or customs fees incurred due to inaccuracies in the address or phone number provided by you. Please allow 10-20 business days for shipment depending on the country. shall be held harmless for all shipping delays.

Once the parts are shipped, there is a 20% restocking fee for all cancelled orders.

 VORTEX AERO, ("Manufacturer") warrants its products ("Product") against all Manufacturers defects ONLY in materials and workmanship for a period of 1 year ( 1 yr parts and labor, shipping included (first 15 days), MFG defect only from the date of purchase subject only to the following conditions and exclusions:


Distributor/Dealer/Customer MUST fill in and send the warranty form. Failure to do so will result in VOID of any warranty.  This Limited Warranty is applicable only to:

  • The original purchaser ("Purchaser") and shall not apply to any subsequent owner, assignee, or other recipient of the part from the original purchaser. Parts purchased: Within the entire world From Distributor or an authorized dealer thereof. Excludes parts purchased from non-VA representatives. MFG defective parts only, but not limited to: Charges incurred for removal of defective parts; Charges incurred for installation of replacement parts, or; Any additional charges which a Dealer or Service Agent may impose. Purchaser is responsible for all transportation costs and shipping damage incurred to/from Distributor when submitting parts for repair or replacement under this Limited Warranty. NO WARRANTY PART WILL BE SHIPPED UNLESS THE OLD PART IS RETURNED TO DEALER, DISTRIBUTOR OR MANUFACTURER FIRST. If the purchaser or dealer is in a hurry for any part, the part can be purchased at dealer cost, shipped at dealers/purchasers’ expense, then a refund issued back once we have received the part within 30 days of purchaser receiving the part, and the part was in fact defective and under warranty.

  • Any claim against this Limited Warranty shall in no way be construed as extending warranty coverage beyond the original period stated that commenced upon date of purchase.

  • No dealer, nor any other person, or corporation has any authority to amend this Limited Warranty or make any warranties or representations concerning Distributor/Dealer, or to extend this warranty beyond the express terms contained herein. Purchaser releases and holds Distributor harmless from any claims stemming from any unauthorized representations.

  • Purchaser holds the Distributor/Dealer harmless for any consequent injury, loss, or damage resulting from:

  • Defect or malfunction of the Product;

  • Acts of God;

  • Shipping damage;

  • Purchaser misuse, unreasonable use, tampering, abuse, acts of omission, failures to exercise due diligence, or negligence;

  • Alterations to the Product by any person or entity other than the Distributor;This Limited Warranty shall NOT apply in cases where:

  • The part has been damaged due to misuse.

  • Incorrect propeller size is used causing over rev of the engine.

  • The customer has not completely read and returned the warranty card with proper engine serial numbers and customers complete information.

  • Incorrect carb settings are used ie: New carb is installed and the pop-off pressure is not set correctly, or customer does not follow directions in the manual correctly or dealer does not follow manufacturers recommended changes.

  • The Product suffered shipping damage incurred in transit between Distributor and Purchaser. While in such cases, Distributor will do its utmost to supply replacement parts in a timely manner, the Shipper shall be solely liable for all costs incurred due to damage during loading, shipping, and unloading of the Product.

  • The Purchaser has failed to properly assemble the Product and/or exercise due diligence in ensuring that all critical nuts, bolts, screws, and other fasteners are both present and properly tightened prior to using the Product.

  • Parts have been damaged due to improper assembly, excessive force, or failure to follow reasonable mechanical standards.

  • The Purchaser has failed to properly maintain the Product in accordance with the directions contained in the Owner's Manual provided by Manufacturer, including but not limited to damage incurred due to insufficient fuel mixtures causing the engine to run lean.

  • The Purchaser has failed to properly break-in the engine per instructions.

  • not limited to the use of parts other than genuine Vortex Aero parts.

  • The Purchaser has modified the Product in any respect including but The following none VA manufactured parts are covered under warranty for the term of 6mo, part only, no shipping from the time of purchase and do not apply to the 1 yr  warranty.

  • Carburetors

  • Meters

  • Pull starters

  • Spark plugs

  • Springs

  • Exhaust and brackets

  • Silencer

  • Belts

  • Rubber isolators

  • Electronic components

  • Propellers

  • Any and all rubber components

  • ALL Bearings

  • These warranties set forth herein are in lieu of any and all other warranties, expressed or implied, including the warranties of merchantability or fitness for specific purpose. Any implied warranty imposed by state consumer law is limited in duration to 1 year from date of purchase.

  • Purchaser represents and agrees that any claims, which it may assert against Distributor/Dealer, shall be limited to those, which may be asserted under the foregoing limited warranty.

  • This warranty is offered exclusively by VA and it distributors/dealers. By making a purchase with our company, Purchaser agrees that he/she has read, accepts, and agrees to this Limited Warranty and its terms.

  • Dealer/Distributor is responsible for any and all warranties for parts they have sold. Dealers/Distributors shall service their own customers to the best of their ability and warranty parts within a timely manner as to satisfy the customer as quickly as possible with out delay. Failure to do so will result in the loss of the privilege to sell that specific part. This means that the Dealer/Distributor shall negotiate with the customer directly the fastest way to solve the warranty  and not pass it to the manufacturer to solve the issue. The Dealer/ Distributor shall be responsible for his or her own troubleshooting to solve the issue. If the dealer does not know how to troubleshoot the issue, VA will assist the dealer and help the customer solve the issue but will not warranty the part directly. The dealer must follow the warranty policy stated in section 3 of this policy.
